| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-054 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | European And American | Material: | 316L |
|---|---|---|---|
| Shelf Life: | 1Years | Sample: | Free |
| Use: | Level Switch | Pressure: | 1MPA |
| High Light: | level control floats,cistern ball float |
||

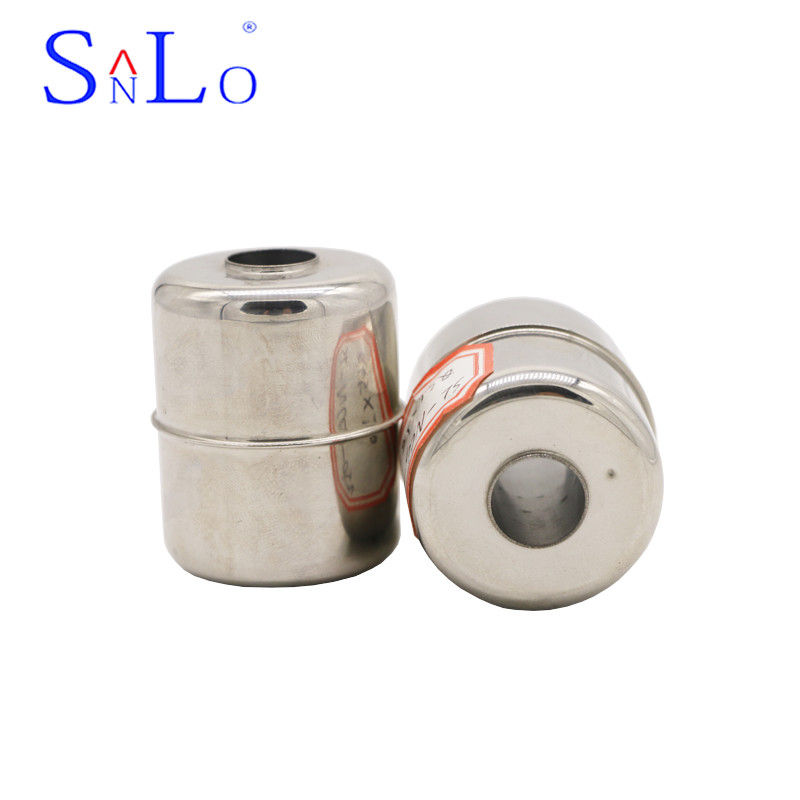

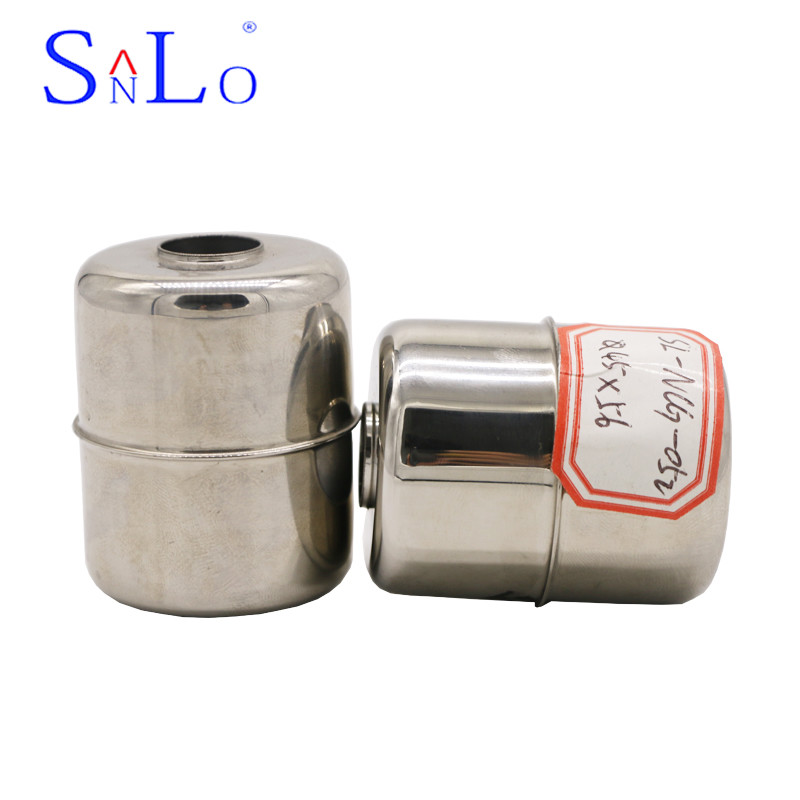

45*56*15.5 magnetic float ball for Level gauge with 1.0MPA Temperature 100---200
Video: https://youtu.be/GBL-SR0dkBQ
Quick Details:
| Brand | SanLo | Type | SL-NCG-054 | Operating temperature | -100--200 | Working pressure | 1.0-2.5MPA |
| Weight | Claim | Material | 316L | High withstand voltage | 2.5MPA | Media specific gravity | ＞0.50 |
| certified product | ISO9000 | Type of magnet | Ferrite |
The difference between 316 and 304 stainless steel:
Now the two most commonly used stainless steel 304, 316 (or 1.4308, 1.4408 corresponding to the German / European standard), the main difference between the chemical composition of 316 and 304 is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance. It is more resistant to corrosion than 304 in high temperature environments. Therefore, in high temperature environments, engineers generally use components of 316 materials. But the so-called thing is not absolute, in the concentrated sulfuric acid environment, do not use 316 for high temperatures. Otherwise, this thing will be big. Everyone who has learned the mechanics has learned the thread. Remember that in order to prevent the thread from being killed under high temperature, a dark solid lubricant that needs to be applied: molybdenum disulfide (MoS2), can draw 2 conclusions from it: One: Mo is indeed a kind of high temperature resistant material (do you know what gold is used for melting? Molybdenum!). Two: Molybdenum easily reacts with high-priced sulfur ions to form sulfides. So no stainless steel is super invincible and corrosion resistant. After all, stainless steel is a piece of impurities (although these impurities can be more resistant to corrosion than steel). Steel can react with other materials.
working principle:
The magnetic flip column level gauge is also called the magnetic flap level gauge, and its structure is mainly designed and produced based on the principle of buoyancy and magnetic force. The position of the float with a magnet (referred to as a magnetic float) in the measured medium is affected by buoyancy. The change of the liquid level causes the change of the position of the magnetic float, the magnetostatic coupling of the magnetic float and the magnetic flip (also become the magnetic flap) causes the magnetic flip to flip a certain angle (the surface of the magnetic flip is coated with different colors), thereby reflecting The condition of the liquid level in the container.
With the electronic module and transmitter module composed of sensor (reed switch) and precision electronic components, the output resistance value signal, current value (4 ~ 20mA) signal, switching signal and other electrical signals can be transmitted. This enables a perfect combination of on-site observation and remote control.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 | |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 | |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 | |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± | |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 | |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | ||
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
