| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Precision float ball |
| Minimum Order Quantity: | 100 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000/day |
| Working Place: | Trap Valve /vent Valve And Check Valve | Material: | 304 |
|---|---|---|---|
| Pressure: | NO | Size: | 40--100 |
| Stock: | Have | Working Life: | 10years |
| High Light: | toilet tank float ball,toilet valve float |
||

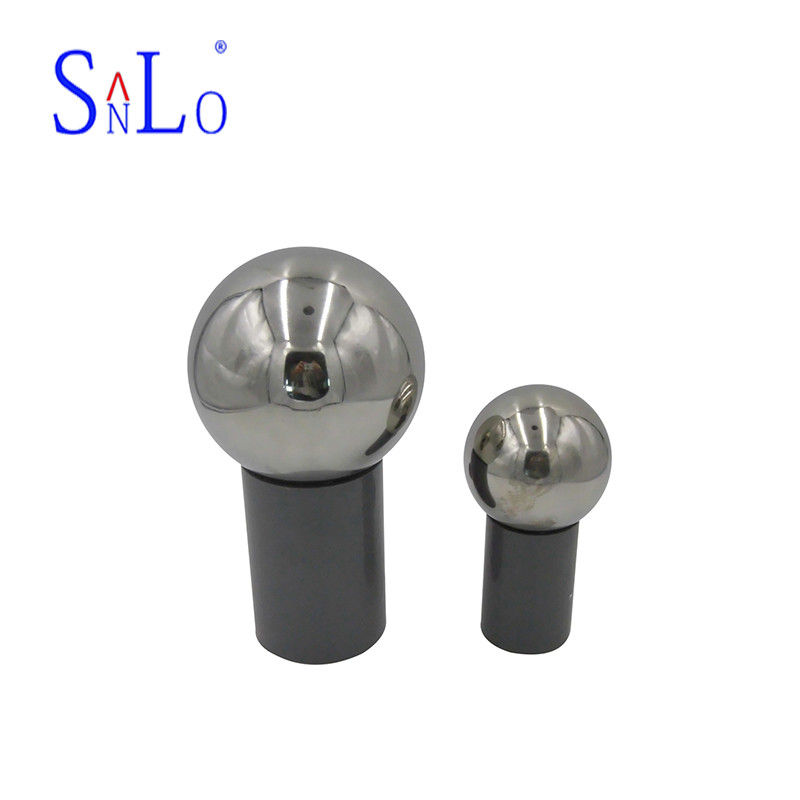

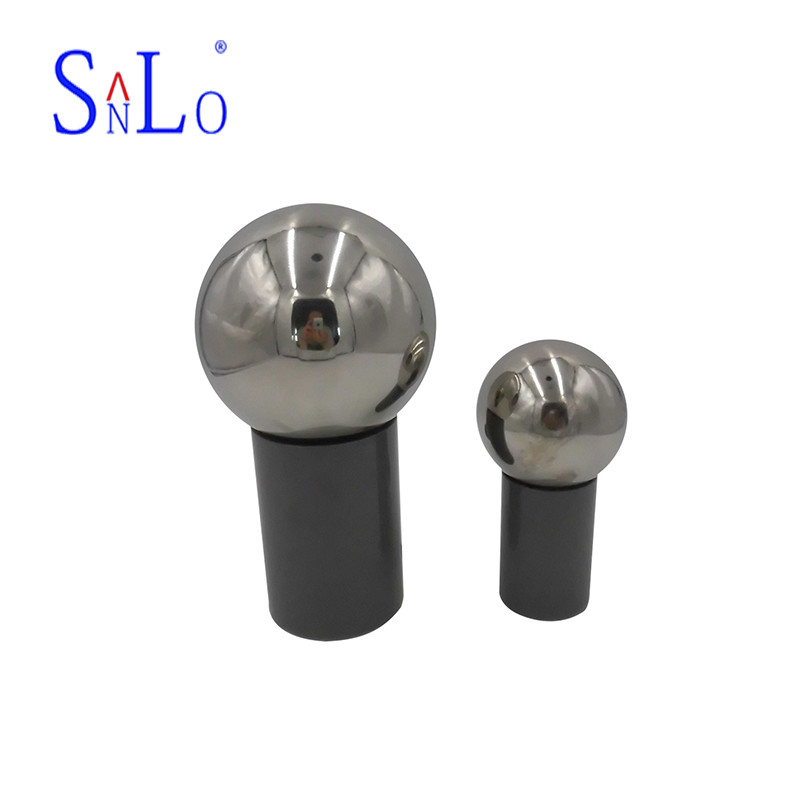

90 and 60MM precision float ball for the trap valve /vent valve and check valve
Video: https://youtu.be/IZC9AvFdK1M
Working principle: how is float works in the trap
The free float trap has a simple structure, and there is only one stainless steel hollow float with fine moving parts inside. It is both a float and a starter, no fragile parts, and has a long service life. The YQ trap has a Y series automatic inside. The air exhaust device is very sensitive and can automatically discharge air and has high work quality.
When the equipment is started, the air in the pipeline is discharged through the Y series automatic air exhaust device. The low temperature condensed water enters the trap. The liquid level of the condensate rises, the float rises, the valve opens, the condensate is quickly discharged, and the steam enters quickly. The equipment and equipment are rapidly warmed up, and the temperature-sensitive liquid of the Y-series automatic air-discharging device expands, and the automatic air-discharging device is closed. The trap begins to work normally, and the float moves up and down with the condensate level, blocking steam drainage. The valve seat of the free float trap is always below the liquid level, forming a water seal, no steam leakage, and the energy saving effect is good. The minimum working pressure is 0.01Mpa, and it is not affected by temperature and working pressure fluctuations from 0.01Mpa to the maximum operating pressure range, and continuous drainage. It can discharge condensed water with saturated temperature, the minimum degree of subcooling is 0 °C, and there is no water in the heating equipment, which can make the heating equipment achieve the best heat exchange efficiency. With a back pressure of more than 85%, it is one of the most ideal steam traps for production process heating equipment.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| 60 | 304 | 0.6 | 8.0 | Polishing | Freestyle | |
| 60,65,68 | 304 | 0.7 | 8.0 | Polishing | ||
| 70,75 | 304 | 0.8 | 8.0 | Polishing | ||
| 80,90,94 | 304 | 0.8 | 6.4 | Polishing | ||
| 98,100,102,110 | 304 | 0.9 | 4.0 | Polishing | ||
| 120,125 | 304 | 0.9 | 4.0 | Polishing | ||
| 130,135 | 304 | 1.0 | 4.0 | Polishing | ||
| 140 | 304 | 1.0 | 4.0 | Polishing | ||
| 150,157,177 | 304 | 1.2 | 3.2 | Polishing | ||
| 190 | 304 | 1.4 | 3.2 | Polishing | ||
| 200,210 | 304 | 1.5 | 3.2 | Polishing | ||
| 220,240 | 304 | 1.8 | 3.2 | Polishing | ||
| 250 | 304 | 2.0 | 3.2 | Polishing | ||
| 280 | 304 | 2.5 | 3.2 | Polishing | ||
| 290 | 304 | 2.5 | 3.2 | Polishing | ||
| 320 | 304 | 3.0 | 3.2 | Polishing | ||
| 382 | 304 | 1.2 | 1.0 | Polishing | ||
| 400 | 304 | 4.0 | 3.2 | Polishing |
Application:
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
